OVERVIEW

IDEA StatiCa Connection can design all types of welded or bolted connections, base plates, footing and anchoring. It provides precise checks, results of strength, stiffness and buckling analysis of a steel joint. Bolts, welds and concrete blocks are checked according to EN/AISC/CISC/AU/SP 16. Templates for most-used connections are available as well as wide range of predefined hot rolled and sheet welded members.

KEY FEATURES

STEEL CONNECTION DESIGN - REINVENTED

Design and check all your steel connections according to the code, in minutes.

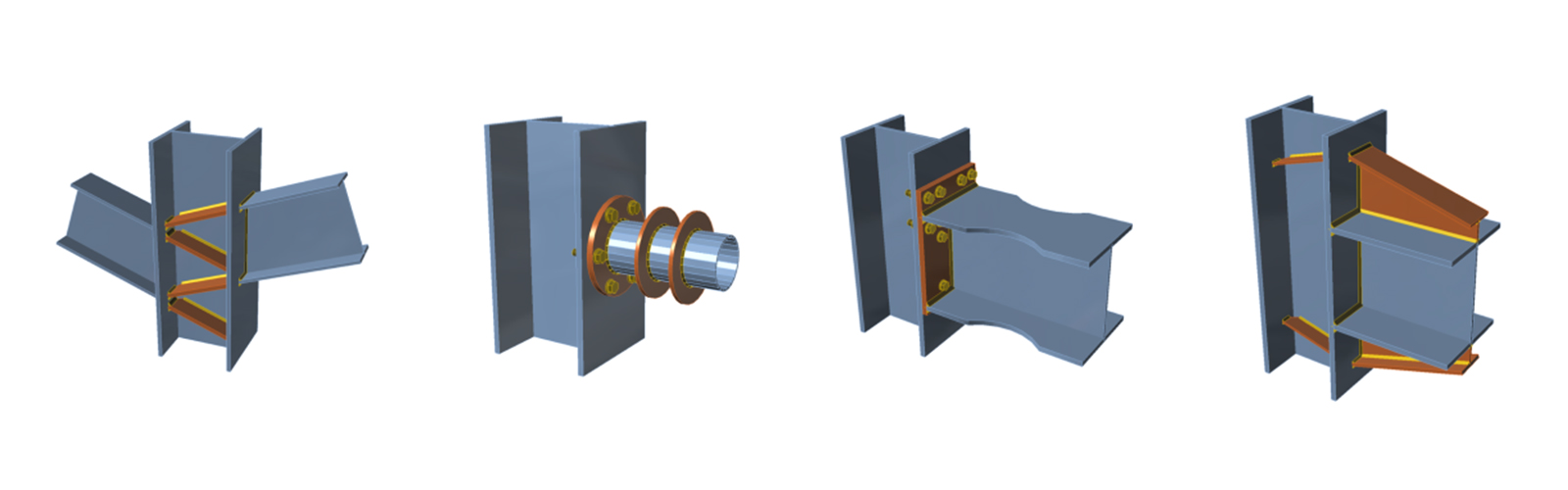

Any topology – Manufacturing Operations

Any loading – All Internal Forces From 3D Global Analysis

Base Plate – N, My, Mz

3D Loaded Joint

End Plate – My, Mz, Vy, Vz

IDEA StatiCa CONNECTION PROVIDES

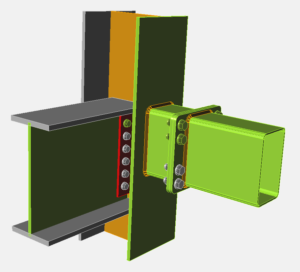

Overall Check

According to various national design codes

Stress/Strain Analysis

FE model of steel joint is composed automatically

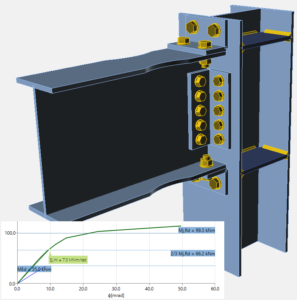

Stiffness Analysis

Rotational or transversal stiffness of any connection

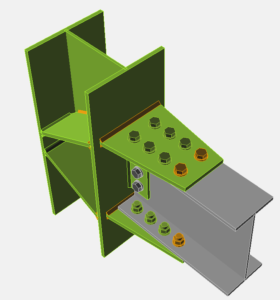

Member Capacity Design

Seismic check of non-dissipative connections

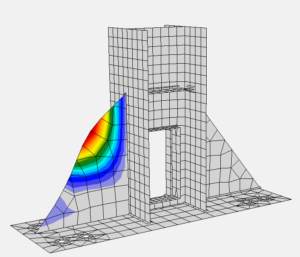

Buckling Analysis

Local buckling effects and critical load factors

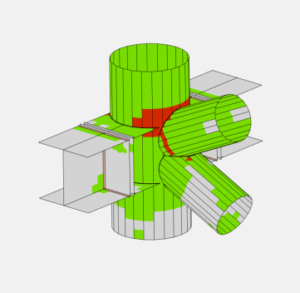

Design Joint Resistance

Maximal possible loads, reserve in joint capacity

BIM LINKS

Speed up your analysis and design process by importing data model from the most widespread FEA and CAD programs, SAP2000, SAAT.Pro, Robot Structural Analysis, ETABS, SCIA Engineer, RFEM/RSTAD, MIDAS Civil + Gen, Tekla Structures, Revit, Advance Design, AxisVM, ConSteel, MODEST, SCADA Proand others.
